طريقة قراءة رموز ضواغط maneurop

فنيين

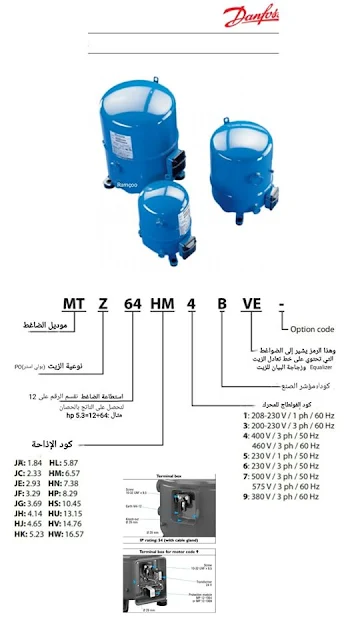

طريقة قراءة رموز ضواغط maneurop

هذا الموديل من ضواغط maneurop (MT&MTZ)

مصمم لكي يعمل على تطبيقات واسعة من medium & high

وخاصة موديل MT صممته شركة دانفوس ليعمل على فريون R22 وزيت الخاص به mineral(معدني) 160P ويمكن ايضا استخدم زيت 160ABM Alkylbenzene

اما موديل MTZ فصمم خصيصا ليعمل على الفريونات الحديثة HFC

R407C-R134a-R404a-R507A

ويستخدم زيت polyester PZ160 وتمتاز هذه الضواغط بخاصية الحماية من رجوع السائل إلى الضاغط بحيث لها جيب واسع عند مدخل خط السحب ليبخر السائل قبل دخوله إلى سلندر البستون وقد صنع من هذه النوعية أكثر من 16 موديل باستطاعة مختلفة تبدأ من 1.84الى 16.57 انج مكعب وتعمل لتغذية 220v وكذلك 380v

منقول من المهندس

Ramçoo Helife
